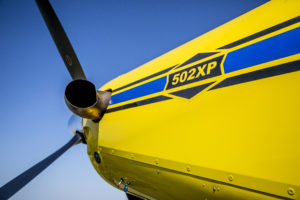

502XP

Extra Power and Performance

The Air Tractor 502XP has the Xtra Power to haul a full load even on the hottest days. It’s a productive balance of an advanced airframe and engine—providing speed, capacity, and productivity in high and/or hot conditions. The 502XP will help you finish more acres in less time, with less effort. Driving that performance is the Pratt & Whitney PT6A-140AG turboshaft engine. It has 867 horsepower available for takeoff atl day, every day. The power is yours. Use it to your advantage.

Specifcations
Engine Type:P&W PT6A-140AG
Engine S.H.P.:867 @ 1900 RPM
Propeller:Hartze'l HC-B4TN-3C/T10702NS
Take-Off Weight:10,480 lbs (4,754 kg)
Landing Weight:8,000 lbs (3,629 kg)
Empty Weight w/ Spray Equipment:4,872 lbs (2,209 kg)
Useful Load:5,608 lbs (2,544 kg)
Hopper Capacity:500 U.S. gal (1,893 L)
Fuel Capacity:234 U.S. gal (885 L)
Wing Span:52 ft (15.84 m)
Wing Area:312 ft2 (28.98 m2)
Main Wheel Size:29.00 x 11-10
Tail Wheel Size:5.00 x 5
Performance
Cruise Speed (at 8,000 ft):167 mph (145 kts)
Working Speed (Typical):120-140 mph (104-122 kts)
Range-Economy Cruise at 8,000 ft.:668 mi (1,075 km)
Stall Speed-Flaps Up:82 mph (71 kts) at 8,000 lbs (3,629 kg)
Stall Speed-Flaps Down:68 mph (59 kts) at 8,000 lbs (3,629 kg)
Stall Speed as Usually Landed:53 mph (46 kts)
Rate of Climb:816 ft/min at 10,480 lbs (4,754 kg)
Take-Off Distance:1,308 ft at 10,480 lbs (4,754 kg)
