Earn and Learn

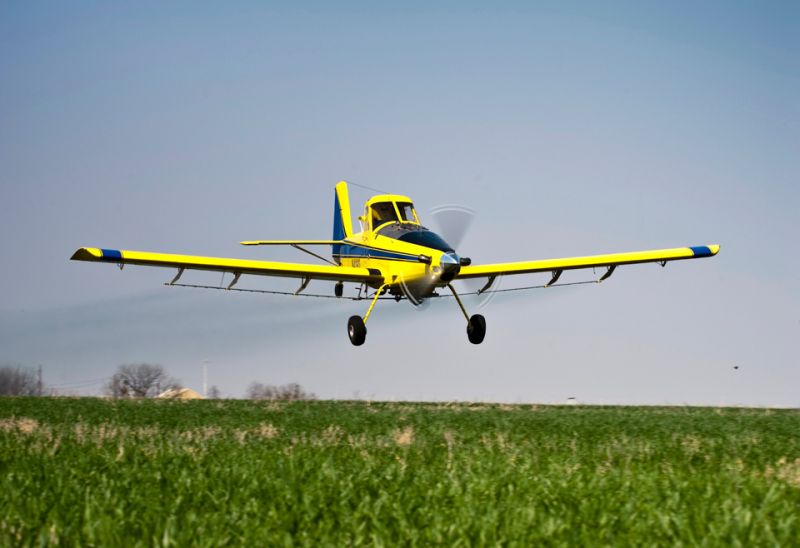

The Air Tractor AT-504 is a spray plane and trainer that’s an excellent platform for aerial application instruction. Side-by-side cockpit seating allows experienced pilots to effectively train new turbo-prop pilots. Both instructor and trainee have complete flight controls and virtually the same cockpit view & flight perspective. Equipped with a Pratt & Whitney PT6-34AG engine, the AT-504 has working speeds equal to the AT-502B. Payload capacity is 485 gallons. Novice turboprop pilots experience similar flight performance when they move from the AT-504 to the AT-502B or other similar size turboprop ag planes. The AT-504 performs beautifully and is fun to fly. And like the rest of the Air Tractor line, it can be a real money maker.
| Specifcations | |
|---|---|
| Engine Type: | P&W PT6A-34AG |
| Engine S.H.P.: | 750 @ 2,200 RPM |
| Propeller: | Hartzell HC-B3TN-3D/T10282NS+4 |
| Take-Off Weight: | 9,600 lbs. (4,354 kg) |
| Landing Weight: | 8,000 lbs. (3,629 kg) |
| Empty Weight w/ Spray Equipment: | 4,768 lbs. (2,163 kg) |
| Useful Load: | 4,832 lbs. (2,191 kg) |
| Hopper Capacity: | 485 U.S. gal. (1,836 L) |
| Fuel Capacity: | 216 U.S. gal. (818 L) |
| Wing Span: | 52 ft. (15.84 m) |
| Wing Area: | 312 ft2 (29.01 m2) |
| Main Wheel Size: | 29.00 x 11-10 |
| Tail Wheel Size: | 5.00 x 5 |
| Performance | |
|---|---|
| Cruise Speed: | 151 mph (243 kph) at 8,000 ft. |
| Working Speed (Typical): | 120-145 mph (193-233 kph) |
| Range, Economy Cruise at 8,000 ft.: | 608 mi. (978 km) |
| Stall Speed-Flaps Up: | 75 mph (121 kph) at 8,000 lbs (3,629 kg) |
| Stall Speed-Flaps Down: | 65 mph (105 kph) at 8,000 lbs (3,629 kg) |
| Stall Speed as Usually Landed: | 53 mph (85 kph) |
| Rate of Climb: | 860 fpm (262 mpm) at 9,600 lbs (4,354 kg) |
| Take-Off Distance: | 1,150 ft (351 m) at 9,600 lbs (4,354 kg) |
